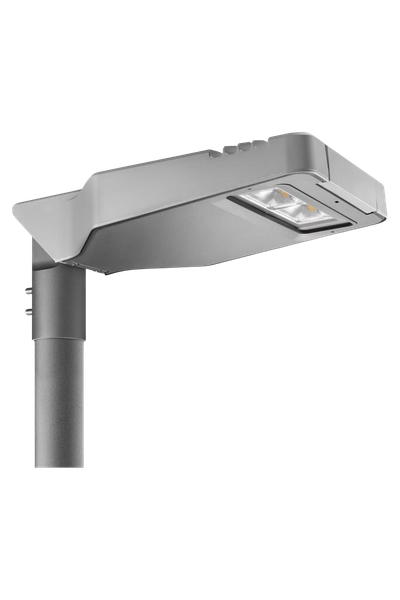

Road (5) Mini+

Street lighting device with cover, frame, and pole attachment in EN AB 46100 die-cast aluminium with low copper content

  • - Polyester powder coated
  • - High-power LED
  • - Printed Circuit Board (PCB) in metal core
  • - Common mode surge protection up to 10kV
  • - With safety switch
  • - Cable plate in PA6.6 + glass fiber
  • - Cable input via PG13.5 cable gland
  • - High reflective aluminium optical system
  • - Tempered flat glass with 4 mm thickness
  • - Opening and closing system with integrated front handle
  • - It can be used up to 50°C of ambient temperature but with reduced currents as indicated in the instruction manual
  • - Suitable for installation both on top of the pole and offset with 5° pitch adjustment
